Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.
- Series 280 sockets/females have a 1HK valve, which provides higher flow capacity
- Chrome plating available as well as additional seal options

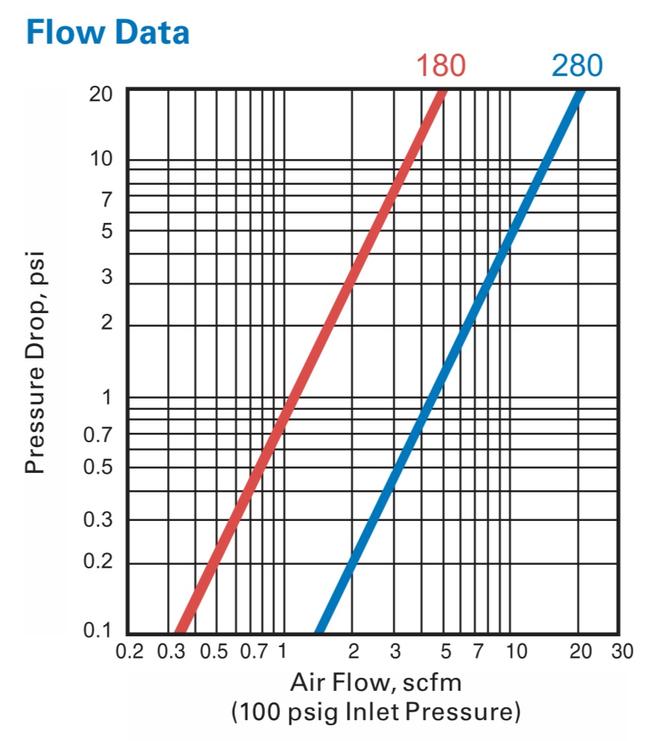

| Series | Body Size | Max Operating Pressure | Min Burst Pressure | Rated Flow | |||
| 180 | 1/8" | 48 (bar) | 700 (psi) | 192 (bar) | 2800 (psi) | 71 (lpm) | 2.5 (scfm |
| 280 | 1/8 | 207 (bar) | 3000 (psi) | 828 (bar) | 1200 (psi) | 283 (lpm) | 10 (scfm |
Figure 1

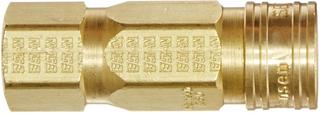

Female End Connections
Product Features
Figure 2
- Series 180 and 280 sockets/females mate with all Series 180 plugs/males
- Series 180 sockets/female have a tire valve

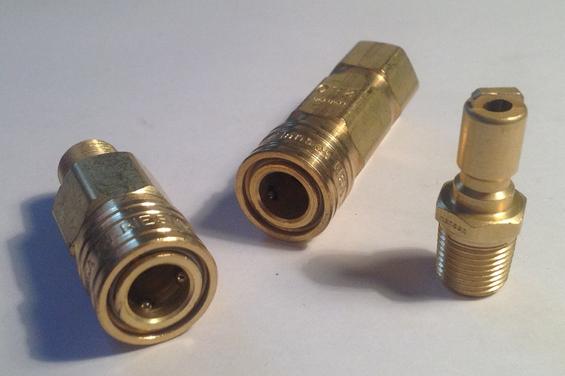

Hansen's 180/280 Series miniature ball lock quick disconnect couplings are designed for use with compressed air, gasses and liquids

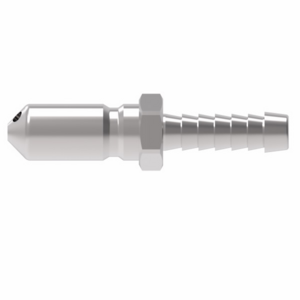

Hose Stem End Connections
Figure 2
Applications & Markets
- Recreation & Entertainment
- Breathing Air
- General Pneumatics
- Laboratory Uses
- Medical
Male End Connections
Figure 2
Figure 1
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||
| 183 | Plug/Male | 1/8 | 1/8 | 1/8-27 | NPTF | 2 | 1.19 | .58 | .52 | 30.2 | 14.7 | 12.7 |
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex |
| | (in) | (in) | (in) | (mm) | (mm) | (mm) | ||||||
| 28S12F | Socket/Female | 1/8 | 1/8 | 1/8-27 | NPTF | 1 | 1.79 | .63 | .56 | 45.5 | 16 | 14.2 |
Figure 1
Physical Characteristics
- Standard body material: Brass
- Standard seal material: Buna-N
- Interchange is propietary to Eaton
