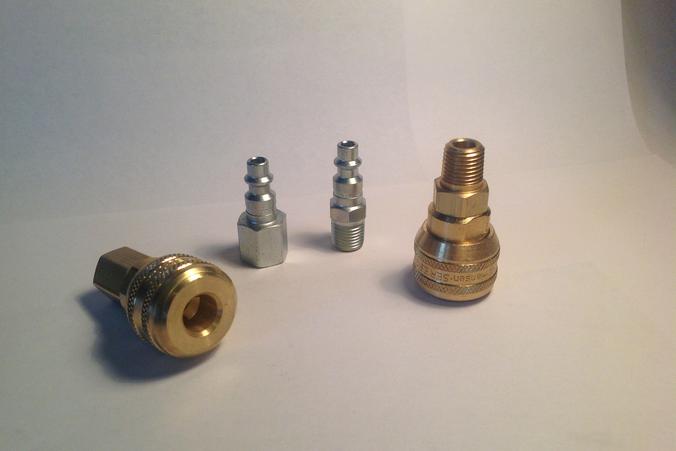

Eatons Hansen 3000 series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings
- Industrial Breathing Air
- General Pneumatics
- Maintenance & Repair
- Fluid Transfer
Dimensions
Standard Part Number
3000
Ordering Informtion
The Hansen line of quick disconnect
couplings are built with your needs in mind. Use the Matrix to create your part
number.
Not all combinations are available.
If you have questions about the product selections email us or give us a call
(855)457-4474
Example 3000BVSL143 is the standard
products with a Brass Valve, Sleeve Lock, and Viton Seal
Figure 6
Interchangeability
Seal Material
143 = Viton
192 = EPDM
115 = Teflon
118 = Neoprene
Dimensions
Fig 8
| All Sizes | 1/4" & 1/2" |
|---|---|
| US Industrial Interchange |
ISO 6150 Series B |
| A-A-59439 (former MIL-C-4109 |
Danfoss Hansen 3000 series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings
Dimensions

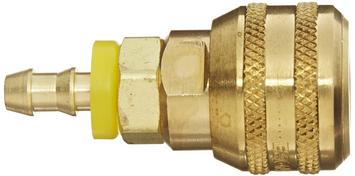

| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Material | Fig | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | ||||||||
| 10 | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 2 | 1.75 | .62 | .56 |
| 10C§ | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 2 | 1.75 | .62 | .56 |
| 10G† | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 2 | 1.75 | .62 | .56 |
| 12E | Plug | 1/4 | 1/8 | 1/8-27 | NPT | Steel | 2 | 1.59 | .58 | .50 |
| 12G† | Plug | 1/4 | 1/8 | 1/8-27 | NPT | Steel | 2 | 1.59 | .58 | .50 |
| 14 | Plug | 1/4 | 3/8 | 3/8-18 | NPT | Steel | 2 | 1.75 | .79 | .69 |
| 14G† | Plug | 1/4 | 3/8 | 3/8-18 | NPT | Steel | 2 | 1.75 | .79 | .69 |
| B10 | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 2 | 1.75 | .62 | .69 |
| LL10 | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Stainless Steel | 2 | 1.75 | .62 | .69 |
| 10NK** | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 2 | 1.75 | .62 | .56 |
| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Material | Fig | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | |||||||

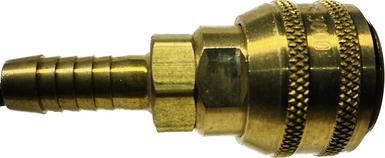

| 3SA0 | Socket | 1/4 | 3/16 | 7/16 | Brass | 7 | 2.65 | 1.19 | .56 |
| 3SB1 | Socket | 1/4 | 1/4 | 15/32 | Brass | 7 | 2.72 | 1.19 | .63 |
| 3SB3 | Socket | 1/4 | 1/4 | 1/2 | Brass | 7 | 2.72 | 1.19 | .63 |
| 3SB5 | Socket | 1/4 | 1/4 | 9/16 | Brass | 7 | 2.72 | 1.19 | .69 |
| 3SB7 | Socket | 1/4 | 1/4 | 5/8 | Brass | 7 | 2.72 | 1.19 | .75 |
| 3SB9 | Socket | 1/4 | 1/4 | 11/16 | Brass | 7 | 2.72 | 1.19 | .81 |
| 3SC5 | Socket | 1/4 | 5/16 | 9/16 | Brass | 7 | 2.78 | 1.19 | .69 |
| 3SC7 | Socket | 1/4 | 5/16 | 5/8 | Brass | 7 | 2.78 | 1.19 | .75 |
| 3SC9 | Socket | 1/4 | 5/16 | 11/16 | Brass | 7 | 2.78 | 1.19 | .81 |
| 3SD5 | Socket | 1/4 | 3/8 | 9/16 | Brass | 7 | 2.84 | 1.19 | .69 |
| 3SD7 | Socket | 1/4 | 3/8 | 5/8 | Brass | 7 | 2.84 | 1.19 | .75 |
| 3SD9 | Socket | 1/4 | 3/8 | 11/16 | Brass | 7 | 2.84 | 1.19 | .81 |
| 3SD11 | Socket | 1/4 | 3/8 | 3/4 | BRass | 7 | 2.84 | 1.19 | .88 |
Figure 1

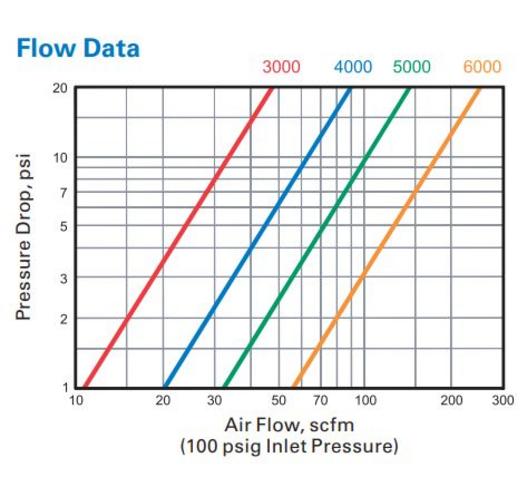

| Series | Body Size | Max Operating Pressure | Min Bursting Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 3000 | 1/4" | 138 (bar) | 2000 (psi) | 552 (bar) | 8000 (psi) | 680 (lpm) | 24 (scfm) |
- All sizes accept US industrial interchange" 1/4" & 1/2" also accept ISO 6150 series B and A-A-59439 plugs/males
- Optional sleeve lock prevents accidental disconnection
Figure 4
†With Bleeder Ball Check-Reduces hose whip ‡For use with push-on style hose *Nickle Plated
| Part Number | Coupling Type | Body Size | Port Size | Material | Fig | A | B |
|---|---|---|---|---|---|---|---|
| (in) | (in) | ||||||
| 16 | Plug | 1/4 | 1/4 | Steel | 6 | 2.22 | .50 |
| 16G† | Plug | 1/4 | 1/4 | Steel | 6 | 2.97 | .77 |
| 16P‡ | Plug | 1/4 | 1/4 | Steel | 6A | 2.00 | .58 |
| 17 | Plug | 1/4 | 3/8 | Steel | 6 | 2.22 | .50 |
| 17G† | Plug | 1/4 | 3/8 | Steel | 6 | 2.96 | .77 |
| 17P‡ | Plug | 1/4 | 3/8 | Steel | 6A | 2.06 | .50 |
| 18E | Plug | 1/4 | 5/16 | Steel | 6 | 2.22 | .50 |
| B17 | Plug | 1/4 | 3/8 | Brass | 6 | 2.22 | .50 |
| 16NK* | Plug | 1/4 | 1/4 | Steel | 6 | 2.22 | .50 |
| 17NK* | Plug | 1/4 | 3/8 | Steel | 6 | 2.22 | .50 |
Figure 3
Physical Characteristics
Fig 5A
Fig 7
†With Bleeder Ball Check-Reduces Hose Whip *Nickle Plated
- Easy Automatic, push to connect design provides instantaneous connection or disconnection of lines, plus automatic shut-off of socket/female end of line
Figure 5
Figure 2

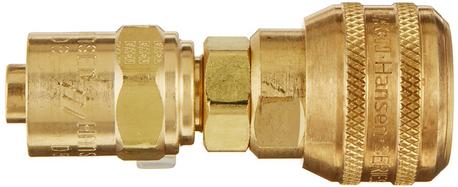

| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Material | Fig | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | ||||||||

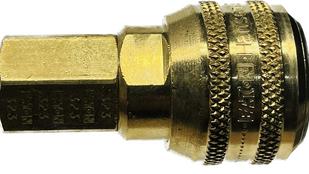

| 2900 | Socket | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 1 | 2.00 | 1.19 | .69 |
| 3100E | Socket | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 1 | 2.19 | 1.19 | .69 |
| 3300E | Socket | 1/4 | 3/8 | 3/8-18 | NPT | Brass | 1 | 2.15 | 1.19 | .69 |
| 300043* | Socket | 1/4 | 7/16 | 7/16-20 | NPT | Brass | 1 | 2.10 | 1.19 | .69 |
| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Material | Fig | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | |||||||
| 3PB1 | Plug | 1/4 | 1/4 | 15/32 | Brass/Steel | 8 | 2.31 | .70 | .63 |
| 3PB3 | Plug | 1/4 | 1/4 | 1/2 | Brass/Steel | 8 | 2.31 | .70 | .63 |
| 3PB5 | Plug | 1/4 | 1/4 | 9/16 | Brass/Steel | 8 | 2.31 | .77 | .69 |
| 3PB7 | Plug | 1/4 | 1/4 | 5/8 | Brass/Steel | 8 | 2.31 | .84 | .75 |
| 3PB9 | Plug | 1/4 | 1/4 | 11/16 | Brass/Steel | 8 | 2.31 | .91 | .81 |
| 3PB11 | Plug | 1/4 | 1/4 | 3/4 | Brass/Steel | 8 | 2.31 | .98 | .88 |
| 3PC5 | Plug | 1/4 | 5/16 | 9/16 | Brass/Steel | 8 | 2.38 | .77 | .69 |
| 3PC7 | Plug | 1/4 | 5/16 | 5/8 | Brass/Steel | 8 | 2.38 | .84 | .75 |
| 3PC9 | Plug | 1/4 | 5/16 | 11/16 | Brass/Steel | 8 | 2.38 | .91 | .81 |
| 3PD5 | Plug | 1/4 | 3/8 | 9/16 | Brass/Steel | 8 | 2.44 | .77 | .69 |
| 3PD9 | Plug | 1/4 | 3/8 | 11/16 | Brass/Steel | 8 | 2.44 | .91 | .81 |
| 3PD11 | Plug | 1/4 | 3/8 | 3/4 | Brass/Steel | 8 | 2.44 | .98 | .88 |
Sleeve Lock
SL = Sleeve Lock
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Material | Fig | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | ||||||||
| 11 | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 4 | 1.63 | .79 | .69 |
| 11G† | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 4 | 2.44 | .77 | .69 |
| 13 | Plug | 1/4 | 1/8 | 1/8-27 | NPT | Steel | 4 | 1.47 | .77 | .69 |
| 15E | Plug | 1/4 | 3/8 | 3/8-18 | NPT | Steel | 4 | 1.69 | .94 | .81 |
| 11B | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 4 | 1.63 | .79 | .69 |
| LL11 | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Stainless Steel | 4 | 1.63 | .79 | .69 |
| 11NK* | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Steel | 4 | 1.63 | .79 | .69 |
Product Features
Valve Material
BV = Brass Valve
LLV = Stainless Steel Valve
NV = No Valve
*45° Male Flare § With Ball Check †With Bleeder Ball Check-Reduces Hose Whip **Nickle Plated
- Standard body material: Brass
- Standard seal material: Buna-N
- Optional Seal and valve materials: Sillicone-138, FKM-143, EDM-192
Figure 6A
