Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.

Body Size (in) Body Size (in) with color ring Part Number Coupling Type Dust Plug Material
1/4 - SDC6FF Socket PVC
3/8* - SDC10FF Socket PVC
1/2 3/8 SDC12FF Socket PVC
5/8 - SDC16FF Socket PVC
3/4 1/2 SDC19FF Socket PVC
1 3/4 SDC25FF Socket PVC

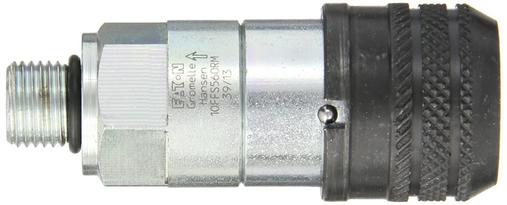

Socket MPT

* For requests on alternative colors or installation instructions, please contact us. ** Orders must be in multiples of 10 pcs.

*** The kit consists of a tool plus 10 socket rings and 10 plug rings of each color.

Applications & Markets

  • Standard Seal Material: NBR+AU
  • Available seal options: NBR+AU, FKM, EPDM,HNBR (upon request)

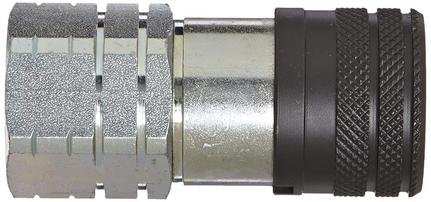

Socket FPT

Figure 2

* Alternative end connections available upon request. To obtain connected length of coupling, add dimensions A (Fig. 1 or Fig. 2) and G (Fig. 3 or 4) together.

* Alternative end connections available upon request. To obtain connected length of coupling, add dimensions A (Fig. 1 or Fig. 2) and G (Fig. 3 or 4) together.

Seal Elastomer P/N Code ISO Size (6FF, 10FF, 12FF, 16FF, 19FF, and 25FF) Max Operation Temp Range Non-ISO Size (32FF, 50FF, and 50FF) Max Operation Temp Range
NBR (Nitrile) + AU (Polyurethane) - -25°C + 100°C / -13°F + 212°F -20°C + 100°C / -4°F + 212°F
FKM -143 -20°C + 200°C / -4°F + 392°F -15°C + 180°C / +5°F + 356°F
EPDM (Ethylene-Propylene) -192 -40°C + 150°C / -40°F + 302°F on request
HNBR -507 -32°C + 150°C / -25°F + 302°F on request
Kalrez 6375 -242 -20°C + 275°C / -4°F + 527°F on request
Generic FFKM (Perfluocarbon) -503 -15°C + 275°C / +5°F + 527°F on request

Physical Characteristics

Part Number Body Size ISO Size Nominal Flow Diameter Thread Size Dimensions
NBR+AU FKM EPDM (in) (mm) (mm) NPT BSPP SAE J 1926-1 Fig D (in) E (in) F (in) G (in) Hex (mm) D (mm) E (mm) F  (mm) G (mm) Hex (mm)
6FFP25 6FFP25143 6FFP25192 1/4 6.3 6 1/4-18F - - 3 2.01 0.64 0.94 1.58 0.87 51 16.2 24 40.1 22
6FFP25BS 6FFP25BS143 6FFP25BS192 1/4 6.3 6 - 1/4-19 - 3 2.01 0.64 0.94 1.58 0.87 51 16.2 24 40.1 22
6FFP56UN 6FFP56UN143 6FFP56UN192 1/4 6.3 6 - - -9/16 18F UNF 3 2.05 0.64 0.94 1.62 0.87 52 16.2 24 41.1 22
10FFP37 10FFP37143 10FFP37192 3/8 10 8.6 3/8-18F - - 3 2.56 0.8 1.16 1.96 1.06 65 19.7 29.5 49.7 27
10FFP37BS 10FFP37BS143 10FFP37BS192 3/8 10 8.6 - 3/8-19 - 3 2.56 0.78 1.16 1.96 1.06 65 19.7 29.5 49.7 27
10FFP50 10FFP50143 10FFP50192 3/8 10 8.6 1/2-14F - - 3 2.68 0.78 1.16 2.08 1.06 68 19.7 29.5 52.7 27
10FFP50BS 10FFP50BS143 10FFP50BS192 3/8 10 8.6 - 1/2-14 - 3 2.68 0.78 1.16 2.08 1.06 68 19.7 29.5 52.7 27
10FFP56UN 10FFP56UN143 10FFP56UN192 3/8 10 8.6 - - 9/16-18F UNF 3 2.68 0.78 1.16 2.08 1.06 68 19.7 29.5 52.7 27
10FFP75UN 10FFP75UN143 10FFP75UN192 3/8 10 8.6 - - 3/4-16F UNF 3 2.68 0.78 1.16 2.08 1.06 68 19.7 29.5 52.7 27
10FFP87UN 10FFP87UN143 10FFP87UN192 3/8 10 8.6 - - 7/8-14F UNF 3 2.80 0.78 1.30 2.19 1.18 71 19.7 33 55.7 30
12FFP106UN 12FFP106UN143 12FFP106UN192 1/2 12.5 11 - - 1 1/16-12F UNF 3 2.95 0.96 1.56 2.28 1.42 75 24.5 39.5 58 36
12FFP50 12FFP50143 12FFP50192 1/2 12.5 11 1/2-14F - - 3 2.71 0.96 1.56 2.05 1.42 69 24.5 39.5 52 36
12FFP50BS 12FFP50BS143 12FFP50BS192 1/2 12.5 11 - 1/2-14 - 3 2.71 0.96 1.56 2.05 1.42 69 24.5 39.5 52 36
12FFP75 12FFP75143 12FFP75192 1/2 12.5 11 3/4-14F - - 3 2.83 0.96 1.56 2.16 1.42 72 24.5 39.5 55 36
12FFP75BS 12FFP75BS143 12FFP75BS192 1/2 12.5 11 - 3/4-14 - 3 2.83 .096 1.56 2.16 1.42 72 24.5 39.5 55 36
12FFP75UN 12FFP75UN143 12FFP75UN192 1/2 12.5 11 - - 3/4-16F UNF 3 2.71 0.96 1.56 2.05 1.42 69 24.5 39.5 52 36
12FFP87UN 12FFP87UN143 12FFP87UN192 1/2 12.5 11 - - 7/8-14F UNF 3 2.83 .096 1.56 2.16 1.42 72 24.5 39.5 55 36
16FFP106UN 16FFP106UN143 16FFP106UN192 5/8 16 13 - - 1 1/16-12F UNF 3 2.95 1.06 1.56 2.28 1.42 75 27 39.5 58 36
16FFP50 16FFP50143 16FFP0192 5/8 16 13 1/2-14F - - 3 2.71 1.06 1.56 2.05 1.42 69 27 39.5 52 36
16FFP50BS 16FFP50BS143 16FFP50192 5/8 16 13 - 1/2-14 - 3 2.71 1.06 1.56 2.05 1.42 69 27 39.5 52 36
16FFP75 16FFP75143 16FFP75192 5/8 16 13 3/4-14F - - 3 2.83 1.06 1.56 2.16 1.42 72 27 39.5 55 36
16FFP75BS 16FFP75BS143 16FFP75BS192 5/8 16 13 - 3/4-14 - 3 2.83 1.06 1.56 2.16 1.42 72 27 39.5 55 36
16FFP75UN 16FFP75UN143 16FFPUN192 5/8 16 13 - - 3/4-16F UNF 3 2.71 1.06 1.56 2.05 1.42 69 27 39.5 52 36
16FFP87UN 16FFP87UN143 16FFP87UN192 5/8 16 13 - - 7/8-14F UNF 3 2.83 1.06 1.56 2.16 1.42 72 27 39.5 55 36
19FFP100 19FFP100143 19FFP100192 3/4 19 15 1 11-5F - - 3 3.69 1.18 1.81 2.84 1.65 93.8 29.9 46 72 42
19FFP100BS 19FFP100BS143 19FFP100BS192 3/4 19 15 - 1-11 - 3 3.69 1.18 1.81 2.84 1.65 93.8 29.9 46 72 42
19FFP106UN 19FFP106UN143 19FFP106UN192 3/4 19 15 - - 1 1/16-12F UNF 3 3.69 1.18 1.81 2.84 1.65 93.8 29.9 46 72 42
19FFP131UN 19FFP131UN143 19FFP131UN192 3/4 19 15 - - 1 5/16-12F UNF 3 3.69 1.18 1.81 2.84 1.65 93.8 29.9 46 72 42
19FFP75 19FFP75143 19FFP75192 3/4 19 15 3/4-14F - - 3 3.69 1.18 1.81 2.84 1.65 93.8 29.9 46 72 42
19FFP75BS 19FFP75BS143 19FFP75BS192 3/4 19 15 - 3/4-14 - 3 3.69 1.18 1.81 2.84 1.65 93.8 29.9 46 72 42
25FFP100 25FFP100143 25FFP100192 1 25 18 1 11-5F - - 3 4.12 4.42 2.36 3.22 2.17 104.6 36 60 81.7 55
25FFP100BS 25FFP100BS143 25FFP100BS192 1 25 18 - 1-11 - 3 4.12 1.42 2.36 3.22 2.17 104.6 36 60 81.7 55
25FFP125 25FFP125143 25FFP125192 1 25 18 1 1/4-11F - - 3 4.12 1.42 2.36 3.22 2.17 104.6 36 60 81.7 55
25FFS125BS 25FFS125BS143 25FFS125BS192 1 25 18 1 1/4-11 - - 3 4.12 1.42 2.36 3.22 2.17 104.6 36 60 81.7 55
25FFP131UN 25FFP131UN143 25FFP131UN192 1 25 18 - - 1 5/16-12F UNF 3 4.12 1.42 2.36 3.22 2.17 104.6 36 60 81.7 55
25FFP162UN 25FFP162UN143 25FFP162UN192 1 25 18 - - 1 5/8-12F UNF 3 4.12 1.42 2.36 3.22 2.17 104.6 36 60 81.7 55
32FFP125 32FFP125143 32FFP125192 1 1/4 - 22.1 1 1/4  11,5F - - 3 4.15 1.73 2.36 3.24 2.17 105.5 44 60 82.3 55
32FFP125BS 32FFP125BS143 32FFP125BS192 1 1/4 - 22.1 - 1 1/4-11 - 3 4.15 1.73 2.36 3.24 2.17 105.5 44 60 82.3 55
32FFP162UN 32FFP162UN143 32FFP162UN192 1 1/4 - 22.1 - - 1 5/8-12F UNF 3 4.15 1.73 2.36 3.24 2.17 105.5 44 60 82.3 55
40FFP150 40FFP150143 40FFP150192 1 1/2 - 30.1 1 1/2 11,5F - - 3 4.13 2.24 2.61 3.01 2.36 105 57 66.3 76.5 60
40FFP150BS 40FFP150BS143 40FFP150BS192 1 1/2 - 30.1 - 1 1/2-11 - 3 4.13 2.24 2.61 3.01 2.36 105 57 66.3 76.5 60
40FFP187UN 40FFP187UN143 40FFP187UN192 1 1/2 - 30.1 - - 1 7/8-12F UNF 3 4.13 2.24 2.61 3.01 2.36 105 57 66.3 76.5 60
50FFP200 50FFP200143 50FFP200192 2 - 39.2 2 11,5F - - 3 5.31 2.87 3.29 3.80 2.95 135 73 83.5 96.6 75
50FFP200BS 50FFP200BS143 50FFP200BS192 2 - 39.2 - 2-11 - 3 5.31 2.87 3.29 3.80 2.95 135 73 83.5 96.6 75
50FFP250UN 50FFP250UN143 50FFP250UN192 2 - 39.2 - - 2 1/2-12F UNF 3 5.31 2.87 3.29 3.80 2.95 135 73 83.5 96.6 75

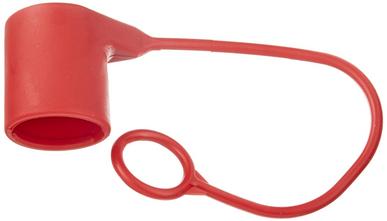

Socket Dust Cap

  • Hydraulic and Fluid Transfer
  • Construction equipment
  • Agriculture equipment
  • Utility vehicles
  • On-Highway vehicles
  • Stationary in-plant hydraulics and fluid transfer
  • Interchangeable with HTMA couplings in the 3/8" size

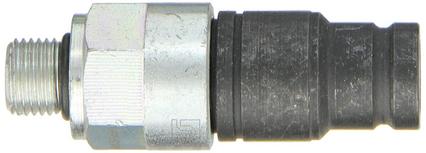

Plug MPT

* For reference only, based on  recommended temperatures. Contact us for technical support or for  further information on fluid compatibility

Part Number Body Size ISO Size Nominal Flow Diameter Thread Size Dimensions
NBR+AU FKM EPDM (in) (mm) (mm) NPT BSPP SAE J 1926-1 Fig A (in) B (in) C (in) Hex (in) A (mm) B (mm) C (mm) Hex (mm)
6FFS25 6FFS25143 6FFS25192 1/4 6.3 6 1/4-18F - - 1 2.13 1.06 0.94 0.87 54 27 24 22
6FFS25BS 6FFS25BS143 6FFS25BS192 1/4 6.3 6 - 1/4-19 - 1 2.13 1.06 0.94 0.87 54 27 24 22
6FFS56UN 6FFS56UN143 6FFS56UN192 1/4 6.3 6 - - -9/16 18F UNF 1 2.13 1.06 0.94 0.87 54 27 24 22
10FFS37 10FFS37143 10FFS37192 3/8 10 8.6 3/8-18F - - 1 2.67 1.26 1.16 1.06 67.8 32 29.5 27
10FFS37BS 10FFS37BS143 10FFS37BS192 3/8 10 8.6 - 3/8-19 - 1 2.67 1.26 1.16 1.06 67.8 32 29.5 27
10FFS50 10FFS50143 10FFS50192 3/8 10 8.6 1/2-14F - - 1 2.79 1.26 1.16 1.06 70.8 32 29.5 27
10FFS50BS 10FFS50BS143 10FFS50BS192 3/8 10 8.6 - 1/2-14 - 1 2.79 1.26 1.16 1.06 70.8 32 29.5 27
10FFS56UN 10FFS56UN143 10FFS56UN192 3/8 10 8.6 - - 9/16-18F UNF 1 2.79 1.26 1.16 1.06 70.8 32 29.5 27
10FFS75UN 10FFS75UN143 10FFS75UN192 3/8 10 8.6 - - 3/4-16F UNF 1 2.79 1.26 1.16 1.06 70.8 32 29.5 27
10FFS87UN 10FFS87UN143 10FFS87UN192 3/8 10 8.6 - - 7/8-14F UNF 1 2.91 1.26 1.30 1.18 73.8 32 33 30
12FFS106UN 12FFS106UN143 12FFS106UN192 1/2 12.5 11 - - 1 1/16-12F UNF 1 3.50 1.50 1.56 1.42 89 38.2 39.5 36
12FFS50 12FFS50143 12FFS50192 1/2 12.5 11 1/2-14F - - 1 3.27 1.50 1.56 1.42 83 38.2 39.5 36
12FFS50BS 12FFS50BS143 12FFS50BS192 1/2 12.5 11 - 1/2-14 - 1 3.27 1.50 1.56 1.42 83 38.2 39.5 36
12FFS75 12FFS75143 12FFS75192 1/2 12.5 11 3/4-14F - - 1 3.39 1.50 1.56 1.42 86 38.2 39.5 36
12FFS75BS 12FFS75BS143 12FFS75BS192 1/2 12.5 11 - 3/4-14 - 1 3.39 1.50 1.56 1.42 86 38.2 39.5 36
12FFS75UN 12FFS75UN143 12FFS75UN192 1/2 12.5 11 - - 3/4-16F UNF 1 3.27 1.50 1.56 1.42 83 38.2 39.5 36
12FFS87UN 12FFS87UN143 12FFS87UN192 1/2 12.5 11 - - 7/8-14F UNF 1 3.39 1.50 1.56 1.42 86 38.2 39.5 36
16FFS106UN 16FFS106UN143 16FFS106UN192 5/8 16 13 - - 1 1/16-12F UNF 1 3.50 1.66 1.56 1.42 89 42.2 39.5 36
16FFS50 16FFS50143 16FFS50192 5/8 16 13 1/2-14F - - 1 3.27 1.66 1.56 1.42 83 42.2 39.5 36
16FFS50BS 16FFS50BS143 16FFS50192 5/8 16 13 - 1/2-14 - 1 3.27 1.66 1.56 1.42 83 42.2 39.5 36
16FFS75 16FFS75143 16FFS75192 5/8 16 13 3/4-14F - - 1 3.39 1.66 1.56 1.42 86 42.2 39.5 36
16FFS75BS 16FFS75BS143 16FFS75BS192 5/8 16 13 - 3/4-14 - 1 3.39 1.66 1.56 1.42 86 42.2 39.5 36
16FFS75UN 16FFS75UN143 16FFSUN192 5/8 16 13 - - 3/4-16F UNF 1 3.27 1.66 1.56 1.42 83 42.2 39.5 36
16FFS87UN 16FFS87UN143 16FFS87UN192 5/8 16 13 - - 7/8-14F UNF 1 3.39 1.66 1.56 1.42 86 42.2 39.5 36
19FFS100 19FFS100143 19FFS100192 3/4 19 15 1 11-5F - - 1 3.80 1.82 1.81 1.65 96.6 46.2 46 42
19FFS100BS 19FFS100BS143 19FFS100BS192 3/4 19 15 - 1-11 - 1 3.80 1.82 1.81 1.65 96.6 46.2 46 42
19FFS106UN 19FFS106UN143 19FFS106UN192 3/4 19 15 - - 1 1/16-12F UNF 1 3.80 1.82 1.81 1.65 96.6 46.2 46 42
19FFS131UN 19FFS131UN143 19FFS131UN192 3/4 19 15 - - 1 5/16-12F UNF 1 3.80 1.82 1.81 1.65 96.6 46.2 46 42
19FFS75 19FFS75143 19FFS75192 3/4 19 15 3/4-14F - - 1 3.80 1.82 1.81 1.65 96.6 46.2 46 42
19FFS75BS 19FFS75BS143 19FFSBS192 3/4 19 15 - 3/4-14 - 1 3.80 1.82 1.81 1.65 96.6 46.2 46 42
25FFS100 25FFS100143 25FFS100192 1 25 18 1 11-5F - - 1 4.07 2.17 2.36 2.17 103.5 55.2 60 55
25FFS100BS 25FFS100BS143 25FFS100BS192 1 25 18 - 1-11 - 1 4.07 2.17 2.36 2.17 103.5 55.2 60 55
25FFS125 25FFS125143 25FFS125192 1 25 18 1 1/4-11F - - 1 4.07 2.17 2.36 2.17 103.5 55.2 60 55
25FFS125BS 25FFS125BS143 25FFS125BS192 1 25 18 1 1/4-11 - - 1 4.07 2.17 2.36 2.17 103.5 55.2 60 55
25FFS131UN 25FFS131UN143 25FFS131UN192 1 25 18 - - 1 5/16-12F UNF 1 4.07 2.17 2.36 2.17 103.5 55.2 60 55
25FFS162UN 25FFS162UN143 25FFS162UN192 1 25 18 - - 1 5/8-12F UNF 1 4.07 2.17 2.36 2.17 103.5 55.2 60 55
32FFS125 32FFS125143 32FFS125192 1 1/4 - 22.1 1 1/4 11,5F - - 1 4.93 2.55 2.36 2.17 125.2 64.8 60 55
32FFS125BS 32FFS125BS143 32FFS125BS192 1 1/4 - 22.1 - 1 1/4-11 - 1 4.93 2.55 2.36 2.17 125.2 64.8 60 55
32FFS162UN 32FFS162UN143 32FFS162UN192 1 1/4 - 22.1 - - 1 5/8-12F UNF 1 4.93 2.55 2.36 2.17 125.2 64.8 60 55
40FFS150 40FFS150143 40FFS150192 1 1/2 - 30.1 1 1/2 11,5F - - 1 5.01 3.13 2.76 2.56 12.74 79.5 70 65
40FFS150BS 40FFS150BS143 40FFS150BS192 1 1/2 - 30.1 - 1 1/2-11 - 1 5.01 3.13 2.76 2.56 12.74 79.5 70 65
40FFS187UN 40FFS187UN143 40FFS187UN192 1 1/2 - 30.1 - - 1 7/8-12F UNF 1 5.01 3.13 2.76 2.56 127.4 79.5 70 65
50FFS200 50FFS200143 50FFS200192 2 - 39.2 2 11,5F - - 1 6.17 3.84 3.46 3.15 156.8 97.5 87.8 80
50FFS200BS 50FFS200BS143 50FFS200BS192 2 - 39.2 - 2-11 - 1 6.17 3.84 3.46 3.15 156.8 97.5 7.8 80
50FFS250UN 50FFS250UN143 50FFS250UN192 2 - 39.2 - - 2 1/2-12F UNF 1 6.17 3.84 3.46 3.15 156.8 97.5 87.8 80
Part Number Body Size ISO Size Nominal Diameter Flow Thread Size Figure Dimensions
NBR+AU FKM EPDM (in) (mm) (mm) SAE J 1926-2 Figure D (in) E (in) F (in) G (in) H (in) Hex (in) D (mm) E (mm) F (mm) G (mm) H (mm) Hex (mm)
10FFP56ORM 10FFP56ORM143 10FFP56ORM192 3/8 10 8,6 9/16-18F UNF 4 2.5 0.78 1.06 1.9 0.47 0.94 63.6 19.7 27 48.3 12 23.8
10FFS75ORM 10FFP75ORM143 10FFP75ORM192 3/8 10 8,6 3/4-16F UNF 4 2 0.78 1.06 1 0.55 0.94 63.6 19.7 27 48.3 14 23.8

* Alternative end connections available upon request. To obtain connected length of coupling, add dimensions A (Fig. 1 or Fig. 2) and G (Fig. 3 or 4) together.

* Alternative end connections available upon request. To obtain connected length of coupling, add dimensions A (Fig. 1 or Fig. 2) and G (Fig. 3 or 4) together.

  • Color identification rings available to help prevent crossing lines
  • Standard Material: High resistant carbon steel with zinc trivalent plating and QPQ finish, ROHS compliant

* The ISO size corresponds to the internal diameter of the hose or the external diameter of the rigid tube (as defined in ISO 4397 Standard)

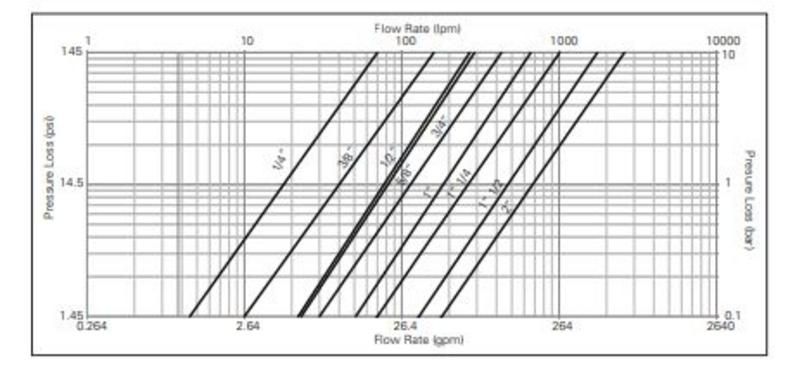

** Indicated values refer to a 1 bar/14.5 psi pressure drop

*** 400 bar for static, steady or non-pulsed applications, 350 bar for ISO pressure rating for dynamic applications with moderate hydraulic shock

Figure 3

Figure 1

Part Number Body Size ISO Size Nominal Diameter Flow Thread Size Figure Dimensions
NBR+AU (in) (mm) (mm) SAE J 1926-2 Figure A (in) B (in) C (in) H (in) Hex (in) A (mm) B (mm) C (mm) H (mm) Hex (mm)
10FFS56ORM 3/8 10 8,6 9/16-18F UNF 2 2.61 1.26 1.06 0.47 0.94 66.4 32 27 12 23.8
10FFS75ORM 3/8 10 8,6 3/4-16F UNF 2 2.61 1.26 1.06 0.55 0.94 66.4 32 27 14 23.8

Product Features

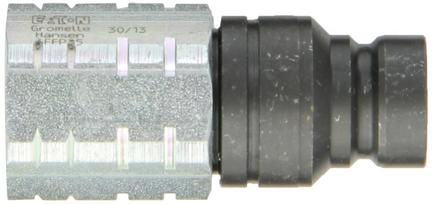

Plug FPT

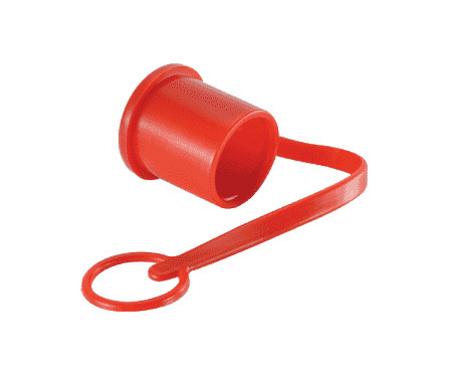

Plug Dust Cap

ISO Size* Coupling Size Connected Plug/Male Half Socket/Female Half Connected Plug/Female Half Socket/Female Half Rated Flow** Fluid Loss Air Inclusion Force to Connect
(mm) (in) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (lpm) (gpm ml-cc ml-cc N Lbs
6.3 1/4 350 5075 350 5075 350 5075 1400 20300 1400 20300 1400 20300 17 4.5 0.004 0.007 80 18
10 3/8 350 5075 350 5075 350 5075 1400 20300 1400 20300 1400 20300 29 7.7 0.006 0.010 140 31.5
12.5 1/2 350 5075 350 5075 350 5075 1400 20300 1400 20300 1400 20300 55 14.5 0.012 0.013 195 43.8
16 5/8 350 5075 350 5075 350 5075 1400 20300 1400 20300 1400 20300 67 17.7 0.016 0.030 205 46.1
19 3/4 350 5075 350 5075 350 5075 1300 18850 1300 18850 1400 20300 105 27.7 0.034 0.015 215 48.3
25 1 350 5075 350 5075 350 5075 1260 18270 1260 18270 1260 18270 177 46.8 0.032 0.033 260 58.5
- 1-1/4 300 4350 300 4350 300 4350 800 11600 800 11600 800 11600 260 68.7 0.170 - 350 78.7
- 1-1/2 270 3915 270 3915 270 3915 800 11600 800 11600 700 10150 450 118.9 0.050 - 390 87.7
- 2 200 2900 160 2320 80 1160 800 11600 640 9280 320 4640 700 184.9 0.100 - 470 105.7
  • Meets or exceeds the ISO 16028 standard
  • Push-to-connect
  • Standard sleeve lock prevents accidental disconnection
Body Size (in) Body Size (in) with color ring Part Number Coupling Type Dust Plug Material
1/4 - SDC6FF Socket PVC
3/8* - SDC10FF Socket PVC
1/2 3/8 SDC12FF Socket PVC
5/8 - SDC16FF Socket PVC
3/4 1/2 SDC19FF Socket PVC
1 3/4 SDC25FF Socket PVC
Body Size ISO Size Size Socket Ring Part Number** Plug Ring Part Number** Tool Part Number Tool & Ring Kit Part Number***
- - - Blue Red Yellow Green Blue Red Yellow Green - -
3/8 10 10FF CR10FFSLB CR10FFSRD CR10FFSYL CR10FFSDG CR10FFPLB CR10FFPRD CR10FFPYL CR10FFPDG CR10FFSP93 CRKIT10FF
1/2 12.5 12FF CR12FFSLB CR12FFSRD CR12FFSYL CR12FFSDG CR12FFPLB CR12FFPRD CR12FFPYL CR12FFPDG CR12FFSP93 CRKIT12FF
5/8 16 16FF CR16FFSLB CR16FFSRD CR16FFSYL CR16FFSDG CR16FFPLB CR16FFPRD CR16FFPYL CR16FFPDG CR16FFSP93 CRKIT16FF
3/4 19 19FF CR19FFSLB CR19FFSRD CR19FFSYL CR19FFSDG CR19FFPLB CR19FFPRD CR19FFPYL CR19FFPDG CR19FFSP93 CRKIT19FF

Figure 4

*Dust caps and dust plugs are offered in black.

Colored Coated Ring Options*

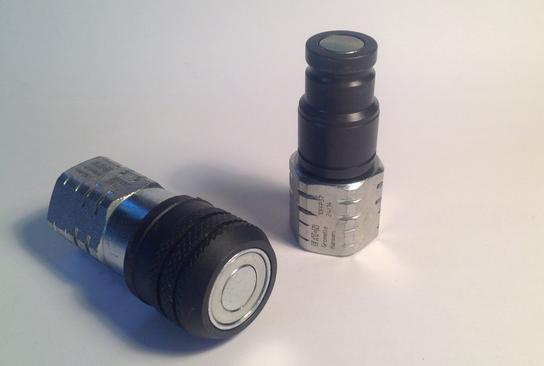

Hansen's FF Series, Hydraulic Flat Face Couplings , is specifically designed for those applications where quick and easy connections and no-spill performance are essential. The FF Series quick disconnect coupling is ideal for use when global interchangeability with other manufactures is important and is available in sizes from 1/4" through 2" to best meet your specific size requirements

HANSEN FLAT FACE
