Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.
Figure 1
Figure 2
Dimensions

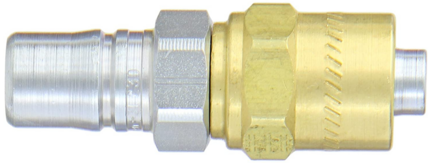

| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Fig | A | B | Hex | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | (mm) | (mm) | (mm) | ||||||
| 3L23D7 | Plug | 3/8 | 3/8 | 5/8 | 2 | 2.45 | 0.84 | 0.75 | 62.2 | 21.3 | 19.05 |
| 3L23D9 | Plug | 3/8 | 3/8 | 11/16 | 2 | 2.45 | 0.91 | 0.81 | 62.2 | 23.1 | 20.57 |
| 3L23D11 | Plug | 3/8 | 3/8 | 3/4 | 2 | 2.45 | 0.98 | 0.88 | 62.2 | 24.9 | 22.35 |
| 3L28P13 | Plug | 3/8 | 1/2 | 13/16 | 2 | 3.14 | 1.05 | 0.94 | 79.8 | 26.7 | 23.88 |
| 3L28P15 | Plug | 3/8 | 1/2 | 7/8 | 2 | 3.14 | 1.12 | 1.00 | 79.8 | 28.4 | 25.40 |
| 3L33R23 | Plug | 3/8 | 3/4 | 1 1/8 | 2 | 3.56 | 1.40 | 1.25 | 90.4 | 35.6 | 31.75 |
| 3L33R25 | Plug | 3/8 | 3/4 | 1 3/16 | 2 | 3.56 | 1.47 | 1.31 | 90.4 | 37.3 | 33.27 |

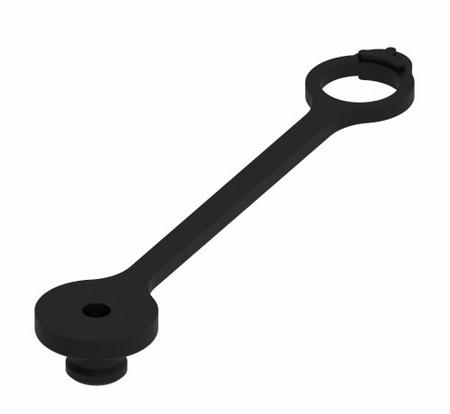

Vinyl Dust Plug
- Shipyards
- General Pneumatics
- Mining
- Marine
† With Bleeder Ball Check- Reduces Hose Whip

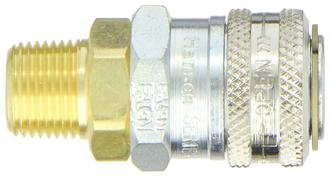

Male End Connections
Dimensions
† With Bleeder Ball Check- Reduces Hose Whip
| Part Number | Coupling Type | Body Size | Hose I.D. | Fig | A | B | A | B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (mm) | (mm) | ||||||||
| 3R17 | Socket/Female | 3/8 | 1/4 | 1 | 2.85 | 1.31 | 72.4 | 33.3 | |||
| 3R195 | Socket/Female | 3/8 | 5/16 | 1 | 2.85 | 1.31 | 72.4 | 33.3 | |||
| 3R22 | Socket/Female | 3/8 | 3/8 | 1 | 2.89 | 1.31 | 73.4 | 33.3 | |||
| 3R27 | Socket/Female | 3/8 | 1/2 | 1 | 2.81 | 1.31 | 71.40 | 33.3 | |||
| 3R32 | Socket/Female | 3/8 | 3/4 | 1 | 3.66 | 1.31 | 93.0 | 33.3 | |||
- Ring lock design prevents accidental disconnection
- to disconnect rotate sleeve 20 degrees
- Standard body material: Zinc trivalent plated Steel
† With Bleeder Ball Check- Reduces Hose Whip
Figure 2

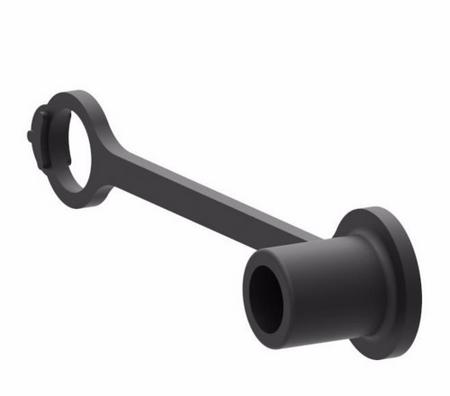

Vinyl Dust Cap
Female End Connections
Figure 1
| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Fig | A | B | Hex | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2R18B1 | Socket/Female | 1/4 | 1/4 | 15/32 | 1 | 2.73 | 1.06 | .63 | 69.3 | 26.9 | 16.00 |
| 2R18B3 | Socket/Female |
1/4 |
1/4 | 1/2 | 1 | 2.73 | 1.06 | .63 | 69.3 | 26.9 | 16.00 |
| 2R18B7 | Socket/Female |
1/4 |
1/4 | 5/8 | 1 | 2.73 | 1.06 | .75 | 69.3 | 26.9 | 19.05 |
| 2R18B11 | Socket/Female |
1/4 |
1/4 | 3/4 | 1 | 2.73 | 1.06 | .88 | 69.3 | 26.9 | 22.35 |
| 2R185C7 | Socket/Female |
1/4 |
5/16 | 5/8 | 1 | 2.79 | 1.06 | .75 | 70.9 | 26.9 | 19.05 |
| 2R185C9 | Socket/Female |
1/4 |
5/16 | 11/16 | 1 | 2.85 | 1.06 | .75 | 72.4 | 26.9 | 20.57 |
| 2R23D7 | Socket/Female |
1/4 |
3/8 | 5/8 | 1 | 2.85 | 1.06 | .75 | 72.4 | 26.9 | 19.05 |
| 2R23D9 | Socket/Female |
1/4 |
3/8 | 11/16 | 1 | 2.85 | 1.06 | .81 | 72.4 | 26.9 | 20.57 |
| 2R2311 | Socket/Female |
1/4 |
3/8 | 3/4 | 1 | 2.85 | 1.06 | .88 | 72.4 | 26.9 | 22.35 |
| 2R23D13 | Socket/Female |
1/4 |
3/8 | 13/16 | 1 | 2.85 | 1.06 | .94 | 72.4 | 26.9 | 23.88 |
| 2R28P13 | Socket/Female |
1/4 |
1/2 | 13/16 | 1 | 3.48 | 1.06 | .94 | 88.4 | 26.9 | 23.88 |
| 2R28P15 | Socket/Female |
1/4 |
1/2 | 7/8 | 1 | 3.48 | 1.06 | 1.00 | 88.4 | 26.9 | 25.40 |
Dimensions
Figure 2
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | C | D | Hex | C | D | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 3L10 | Plug/Male | 3/8 | 1/8 | 1/8-27 | NPTF | 2 | 1.54 | .72 | .63 | 39.1 | 18.3 | 16.0 | |
| 3L15 | Plug/Male | 3/8 | 1/4 | 1/4-18 | NPTF | 2 | 1.70 | .72 | .63 | 43.2 | 18.3 | 16.0 | |
| 3L15G† | Plug/Male | 3/8 | 1/4 | 1/4-18 | NPTF | 2 | 2.64 | .98 | .88 | 67.1 | 24.9 | 22.4 | |
| 3L20 | Plug/Male | 3/8 | 3/8 | 3/8-18 | NPTF | 2 | 1.76 | .79 | .69 | 44.7 | 20.1 | 17.5 |
|
| 3L20G† | Plug/Male | 3/8 | 3/8 | 3/8-18 | NPTF | 2 | 2.64 | .98 | .88 | 71.9 | 24.9 | 22.4 | |
| 3L25 | Plug/Male | 3/8 | 1/2 | 1/2-14 | NPTF | 2 | 2.31 | 1.01 | .88 | 58.7 | 25.7 | 22.4 | |
| 3L25G† | Plug/Male | 3/8 | 1/2 | 1/2-14 | NPTF | 2 | 2.83 | .98 | .88 | 71.9 | 24.9 | 22.4 | |
| 3L30 | Plug/Male | 3/8 | 3/4 | 3/4-14 | NPTF | 2 | 2.38 | 1.23 | 1.06 | 60.5 | 31.2 | 26.9 | |
| 3L30G† | Plug/Male | 3/8 | 3/4 | 3/4-14 | NPTF | 2 | 2.88 | 1.19 | 1.06 | 73.20 | 30.2 | 26.9 | |

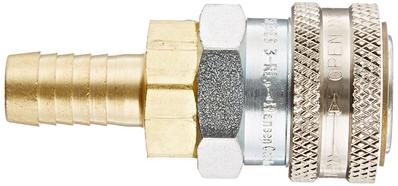

Hose Stem End Connections

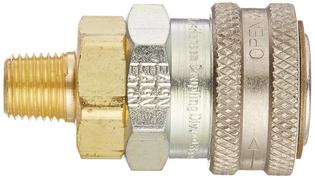

Male End Connections
Dimensions

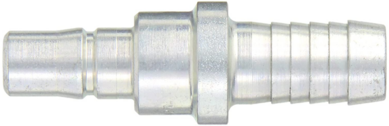

Hose Stem End Connections
Figure 2
| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Fig | C | D | Hex | C | D | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2l18B3 | Socket/Female | 1/4 | 1/4 | 1/2 | 2 | 2.23 | .70 | .63 | 56.6 | 17.8 | 16.00 |
| 2L185C7 | Socket/Female |
1/4 |
5/16 | 5/8 | 2 | 2.29 | .84 | .75 | 58.2 | 21.3 | 19.05 |
| 2L185C9 | Socket/Female |
1/4 |
5/16 | 11/16 | 2 | 2.29 | .91 | .81 | 58.2 | 23.1 | 20.57 |
| 2L23D5 | Socket/Female |
1/4 |
3/8 | 9/16 | 2 | 2.35 | .77 | .69 | 59.7 | 19.6 | 17.53 |
| 2L23D7 | Socket/Female |
1/4 |
3/8 | 5/8 | 2 | 2.35 | .84 | .75 | 59.7 | 21.3 | 19.05 |
| 2L23D9 | Socket/Female |
1/4 |
3/8 | 11/16 | 2 | 2.35 | .91 | .81 | 59.7 | 23.1 | 20.57 |
| 2L23D11 | Socket/Female |
1/4 |
3/8 | 3/4 | 2 | 3.35 | .98 | .88 | 59.7 | 24.9 | 22.35 |
| 2L23D13 | Socket/Female |
1/4 |
3/8 | 13/16 | 2 | 2.35 | 1.05 | .94 | 59.7 | 26.7 | 23.88 |
| 2L28P13 | Socket/Female |
1/4 |
1/2 | 13/16 | 2 | 3.41 | 1.05 | .94 | 86.6 | 26.7 | 23.88 |
| 2L28P15 | Socket/Female |
1/4 |
1/2 | 7/8 | 2 | 3.41 | 1.12 | 1.00 | 86.6 | 28.4 | 25.40 |
Figure 2
Figure 1
2RL Series
Dimensions
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | C | D | Hex | C | D | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 2L10 | Plug/Male | 1/4 | 1/8 | 1/8-27 | NPTF | 2 | 1.51 | .58 | .50 | 38.4 | 14.7 | 12.7 | |
| 2L15 | Plug/Male | 1/4 | 1/4 | 1/4-18 | NPTF | 2 | 1.66 | .65 | .56 | 42.2 | 16.5 | 14.2 | |
| 2L15G† | Plug/Male | 1/4 | 1/4 | 1/4-18 | NPTF | 2 | 2.64 | .77 | .69 | 67.1 | 19.6 | 17.5 | |
| 2L20 | Plug/Male | 1/4 | 3/8 | 3/8-18 | NPTF | 2 | 2.04 | .79 | .69 | 51.8 | 20.1 | 17.5 |
|
| 2L20G† | Plug/Male | 1/4 | 3/8 | 3/8-18 | NPTF | 2 | 2.64 | .77 | .69 | 67.1 | 19.6 | 17.5 | |
| 2L25 | Plug/Male | 1/4 | 1/2 | 1/2-14 | NPTF | 2 | 2.31 | 1.01 | .88 | 58.7 | 25.7 | 22.4 | |
Dimensions
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 3R15 | Socket/Female | 3/8 | 1/4 | 1/4-18 | NPTF | 1 | 2.34 | 1.31 | 1.00 | 59.4 | 33.3 | 25.4 | |
| 3R20 | Socket/Female | 3/8 | 3/8 | 3/8-18 | NPTF | 1 | 2.35 | 1.31 | 1.00 | 59.7 | 33.3 | 25.4 | |
| 3R25 | Socket/Female | 3/8 | 1/2 | 1/2-14 | NPTF | 1 | 2.54 | 1.31 | 1.00 | 64.5 | 33.3 | 25.4 | |
| 3R30 | Socket/Female | 3/8 | 3/4 | 3/4-14 | NPTF | 1 | 2.54 | 1.31 | 1.06 | 64.5 | 33.3 | 26.9 | |
† With Bleeder Ball Check- Reduces Hose Whip
Figure 2
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 2L11 | Plug/Male | 1/4 | 1/8 | 1/8-27 | NPTF | 2 | 1.36 | .65 | .56 | 34.5 | 16.5 | 14.2 | |
| 2L16 | Plug/Male | 1/4 | 1/4 | 1/4-18 | NPTF | 2 | 1.54 | .79 | .69 | 39.1 | 20.1 | 17.5 | |
| 2L16G† | Plug/Male | 1/4 | 1/4 | 1/4-18 | NPTF | 2 | 2.55 | .77 | .69 | 64.8 | 19.6 | 17.5 | |
| 2L21 | Plug/Male | 1/4 | 3/8 | 3/8-18 | NPTF | 2 | 1.88 | .94 | .81 | 47.8 | 23.9 | 20.6 |
|
| 2L26 | Plug/Male | 1/4 | 1/2 | 1/2-14 | NPTF | 2 | 2.18 | 1.15 | 1.00 | 55.4 | 29.2 | 25.4 | |
Figure 1
Applications & Markets
- High Flow capacity
- Push to connect with a ring lock

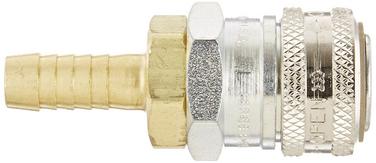

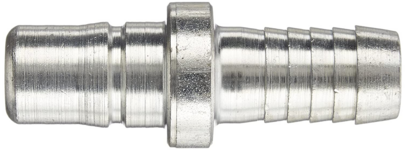

Hose Stem End Connections
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 3L16 | Plug/Male | 3/8 | 1/4 | 1/4-18 | NPTF | 2 | 1.48 | .79 | .69 | 37.6 | 20.1 | 17.5 | |
| 3L16G† | Plug/Male | 3/8 | 1/4 | 1/4-18 | NPTF | 2 | 2.39 | .98 | .88 | 60.7 | 24.9 | 22.4 | |
| 3L21 | Plug/Male | 3/8 | 3/8 | 3/8-18 | NPTF | 2 | 1.63 | .94 | .81 | 41.4 | 23.9 | 20.6 | |
| 3L26 | Plug/Male | 3/8 | 1/2 | 1/2-14 | NPTF | 2 | 2.25 | 1.15 | 1.00 | 57.2 | 29.2 | 25.4 |
|
| 3L26G† | Plug/Male | 3/8 | 1/2 | 1/2-14 | NPTF | 2 | 2.91 | .98 | 1.00 | 73.9 | 24.9 | 25.4 | |
| 3L31 | Plug/Male | 3/8 | 3/4 | 3/4-14 | NPTF | 2 | 2.25 | 1.37 | 1.19 | 57.20 | 34.8 | 30.2 | |
Dimensions
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 2R10 | Socket/Female | 1/4 | 1/8 | 1/8-27 | NPTF | 1 | 2.01 | 1.06 | .88 | 51.1 | 26.9 | 22.4 | |
| 2R15 | Socket/Female | 1/4 | 1/4 | 1/4-18 | NPTF | 1 | 2.16 | 1.06 | .88 | 54.9 | 26.9 | 22.4 | |
| 2R20 | Socket/Female | 1/4 | 3/8 | 3/8-18 | NPTF | 1 | 2.16 | 1.06 | .88 | 54.9 | 26.9 | 22.4 | |
| 2R25 | Socket/Female | 1/4 | 1/2 | 1/2-14 | NPTF | 1 | 2.35 | 1.06 | .88 | 59.7 | 26.9 | 22.4 | |
| Series | Dust Cap | Dust Plug |
|---|---|---|
| 2RL | PPDC1HK | PSDC1HK |
| 3RL | PPDC2HK | PSDC2HK |
Figure 1

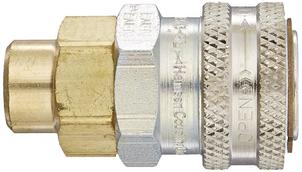

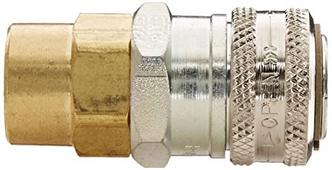

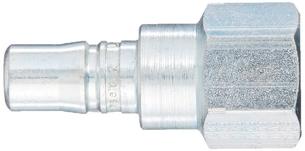

Female End Connections
- Standard seal material: Buna-N
- Optional seal materials: Silicone-138, FKM-143, EPDM-192
Figure 1
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 3R16 | Socket/Female | 3/8 | 1/4 | 1/4-18 | NPTF | 1 | 2.29 | 1.31 | 1.00 | 58.2 | 33.3 | 25.4 | |
| 3R21 | Socket/Female | 3/8 | 3/8 | 3/8-18 | NPTF | 1 | 2.35 | 1.31 | 1.00 | 59.7 | 33.3 | 25.4 | |
| 3R26 | Socket/Female | 3/8 | 1/2 | 1/2-14 | NPTF | 1 | 2.63 | 1.31 | 1.00 | 66.8 | 33.3 | 25.4 | |
| 3R31A | Socket/Female | 3/8 | 3/4 | 3/4-14 | NPTF | 1 | 2.66 | 1.31 | 1.19 | 67.6 | 33.3 | 30.2 | |
† With Bleeder Ball Check- Reduces Hose Whip

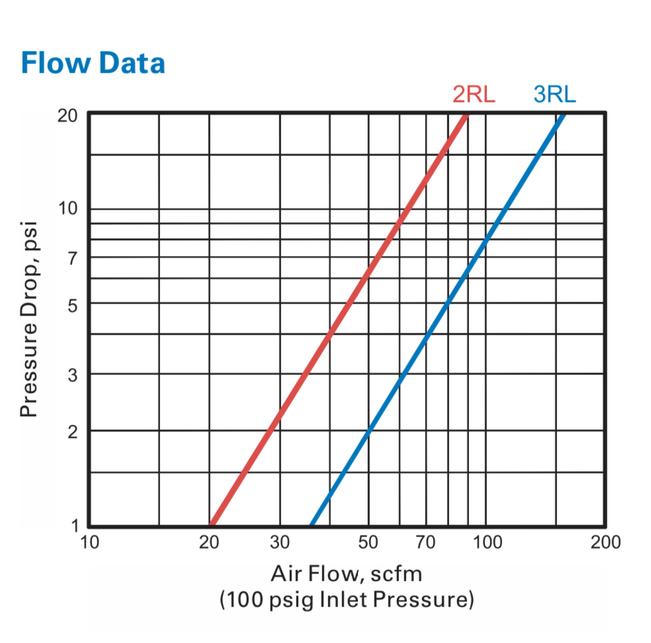

| Series | Body Size | Max Operating Pressure | Min Bursting Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 2RL | 1/4 | 20 (bar) | 300(psi) | 80(bar) | 1200 (psi) | 1350(lpm) | 48 (scfm) |
| 3RL | 3/8 | 20 (bar) | 300 (psi) | 80 (bar) | 1200 (psi) | 2250 (lpm) | 80 (scfm) |
Figure 2
Figure 2
Product Features
Figure 1

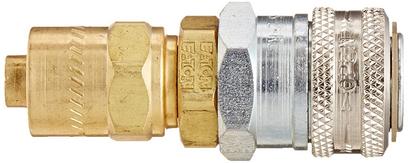

| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Fig | A | B | Hex | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in) | (mm) | (mm) | (mm) | ||||||
| 3R23D7 | Socket | 3/8 | 3/8 | 5/8 | 1 | 3.06 | 1.31 | 0.75 | 77.7 | 33.3 | 19.05 |
| 3R23D9 | Socket | 3/8 | 3/8 | 11/16 | 1 | 3.06 | 1.31 | 0.81 | 77.7 | 33.3 | 20.57 |
| 3R23D11 | Socket | 3/8 | 3/8 | 3/4 | 1 | 3.06 | 1.31 | 0.88 | 77.7 | 33.3 | 22.35 |
| 3R23P13 | Socket | 3/8 | 1/2 | 13/16 | 1 | 3.66 | 1.31 | 0.94 | 93.0 | 33.3 | 23.88 |
| 3R28P15 | Socket | 3/8 | 1/2 | 7/8 | 1 | 3.66 | 1.31 | 1.00 | 93.0 | 33.3 | 25.40 |
| 3R28P17 | Socket | 3/8 | 1/2 | 15/16 | 1 | 3.66 | 1.31 | 1.06 | 93.0 | 33.3 | 26.92 |
| 3R33R23 | Socket | 3/8 | 3/4 | 1 1/8 | 1 | 3.79 | 1.31 | 1.25 | 96.3 | 33.3 | 31.75 |
| 3R33R25 | Socket | 3/8 | 3/4 | 1 3/16 | 1 | 3.79 | 1.31 | 1.31 | 96.3 | 33.3 | 33.27 |
| Part Number | Coupling Type | Body Size | Hose I.D. | Fig | A | B | A | B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (mm) | (mm) | ||||||||
| 2L17 | Plug/Male | 1/4 | 1/4 | 2 | 2.13 | .50 | 54.1 | 12.7 | |||
| 2L195 | Plug/Male | 1/4 | 5/16 | 2 | 2.13 | .50 | 54.1 | 12.7 | |||
| 2L22 | Plug/Male | 1/4 | 3/8 | 2 | 2.13 | .50 | 54.1 | 12.7 | |||
| 2L27 | Plug/Male | 1/4 | 1/2 | 2 | 2.5 | .81 | 63.5 | 20.6 | |||
| Part Number | Coupling Type | Body Size | Hose I.D. | Fig | A | B | A | B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (mm) | (mm) | ||||||||
| 3L17 | Plug | 3/8 | 1/4 | 1 | 2.16 | 0.63 | 54.9 | 16 | |||
| 3L17G† | Plug | 3/8 | 1/4 | 1 | 3.11 | 0.98 | 79.0 | 24.9 | |||
| 3L195 | Plug | 3/8 | 5/16 | 1 | 2.16 | 0.63 | 54.9 | 16.0 | |||
| 3L195G† | Plug | 3/8 | 5/16 | 1 | 3.11 | 0.98 | 79.0 | 24.9 | |||
| 3L22 | Plug | 3/8 | 3/8 | 1 | 2.16 | 0.75 | 54.9 | 19.1 | |||
| 3L22G† | Plug | 3/8 | 3/8 | 1 | 3.11 | 0.98 | 79.0 | 24.9 | |||
| 3L27 | Plug | 3/8 | 1/2 | 1 | 2.16 | 0.81 | 54.9 | 20.6 | |||
| 3L27G† | Plug | 3/8 | 1/2 | 1 | 3.11 | 1.00 | 79.5 | 25.4 | |||
| 3L32 | Plug | 3/8 | 3/4 | 1 | 3.13 | 1.00 | 79.5 | 25.4 | |||
| 3L32G† | Plug | 3/8 | 3/4 | 1 | 3.96 | 0.98 | 100.6 | 24.9 | |||
| Part Number | Coupling Type | Body Size | Hose I.D. | Fig | A | B | A | B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (mm) | (mm) | ||||||||
| 2R17 | Socket/Female | 1/4 | 1/4 | 1 | 2.63 | 1.06 | 66.8 | 26.9 | |||
| 2R195 | Socket/Female | 1/4 | 5/16 | 1 | 2.63 | 1.06 | 66.8 | 26.9 | |||
| 2R22 | Socket/Female | 1/4 | 3/8 | 1 | 2.63 | 1.06 | 66.8 | 26.9 | |||
| 2R27 | Socket/Female | 1/4 | 1/2 | 1 | 2.63 | 1.06 | 66.8 | 26.9 | |||
Figure 1
Dimensions

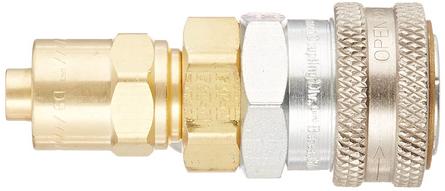

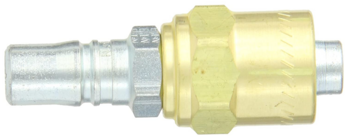

Hose Clamp End Connections
3RL Series
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (in | (mm) | (mm) | (mm) | ||||||||
| 2R11 | Socket/Female | 1/4 | 1/8 | 1/8-27 | NPTF | 1 | 1.91 | 1.06 | .88 | 48.5 | 26.9 | 22.4 | |
| 2R16 | Socket/Female | 1/4 | 1/4 | 1/4-18 | NPTF | 1 | 1.91 | 1.06 | .88 | 48.5 | 26.9 | 22.4 | |
| 2R21 | Socket/Female | 1/4 | 3/8 | 3/8-18 | NPTF | 1 | 2.16 | 1.06 | .88 | 54.9 | 26.9 | 22.4 | |
| 2R26 | Socket/Female | 1/4 | 1/2 | 1/2-14 | NPTF | 1 | 2.43 | 1.06 | 1.00 | 61.7 | 26.9 | 25.4 | |

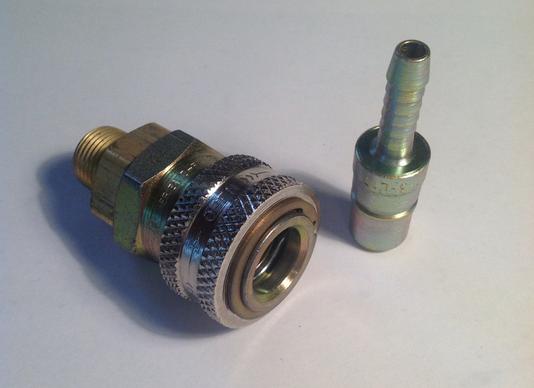

Danfoss Hansen 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Hansen designed for use with compressed air
